Product Descriptions

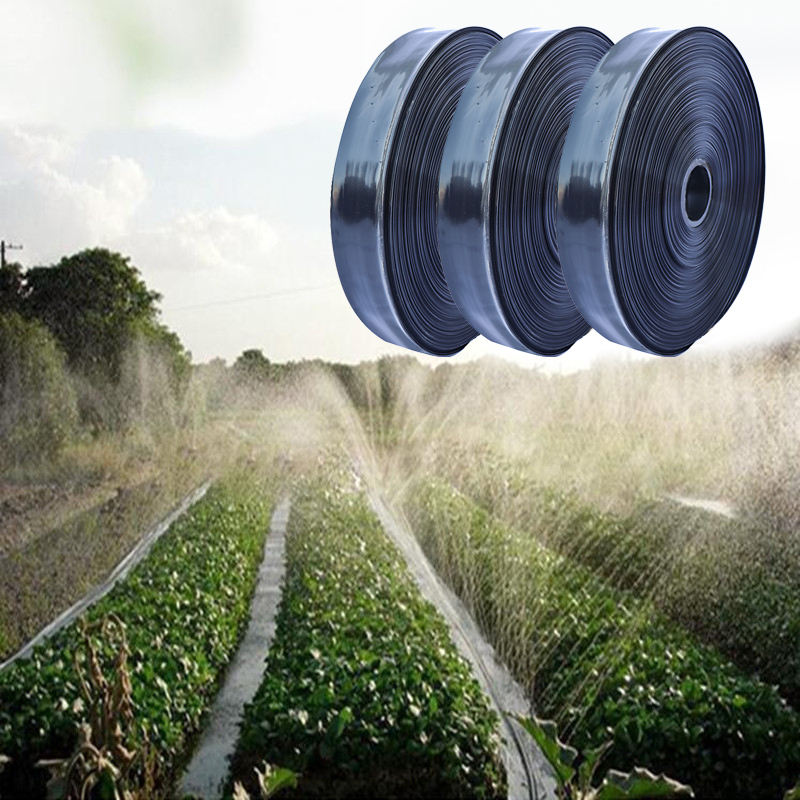

When irrigation by PE micro spray tape, it is similar to fin rain to moisten the crops. Spraying water with litter impact.And even without harming the crops. Especially, it can significantly reduce the humidity in the greenhouse and reduce the disease of crops.

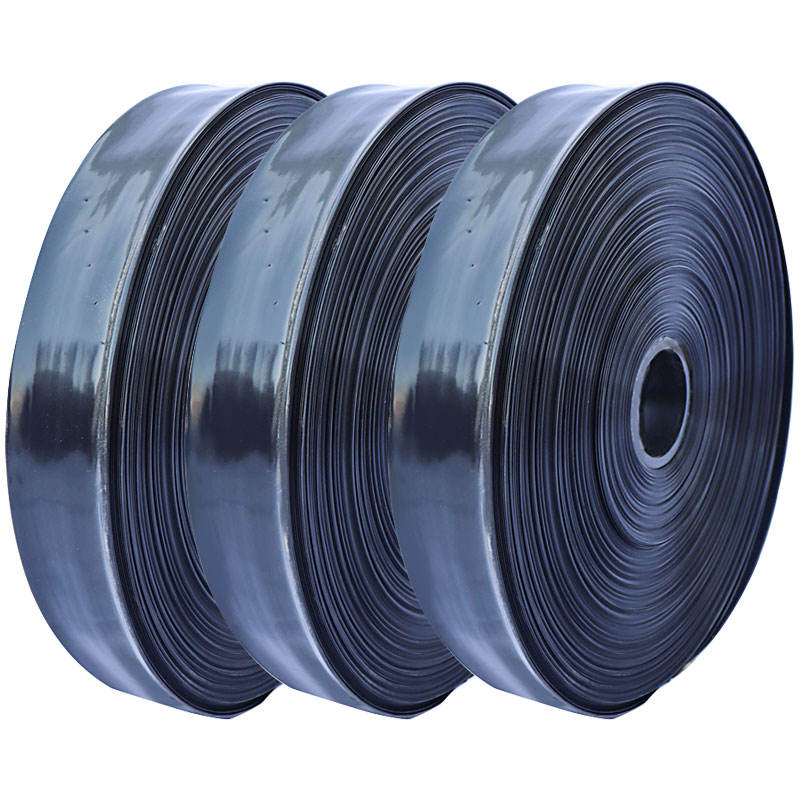

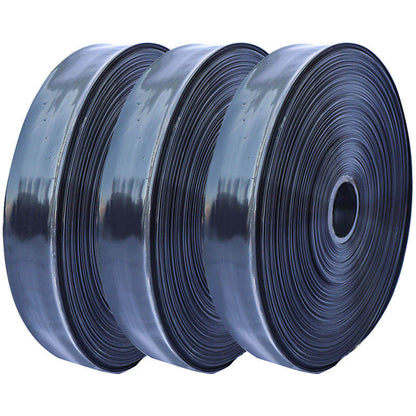

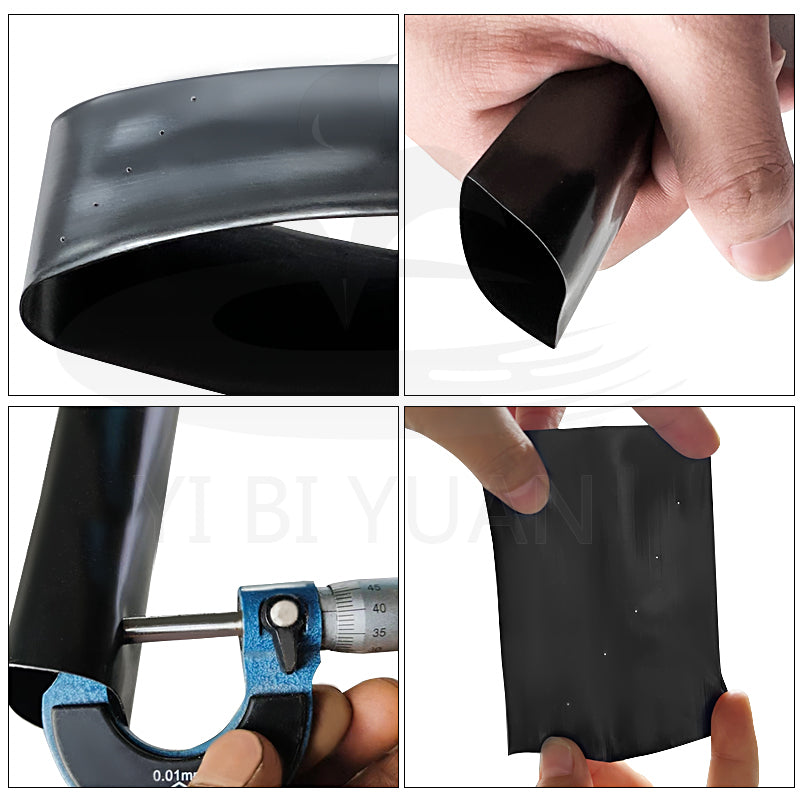

Micro-spraying hose is a new type of micro irrigation equipment, also known as "sprinkler irrigation", "micro-spraying hose", "spray hose", "spray pipe", "porous hose", etc.
The working principle is to bring the water pressure to the field through water pipe and micro nozzle, and through the water outlet hole on micro-spraying hose, under the action of gravity and air resistance, it forms a drizzle-like spraying effect.
The water outlet holes of micro-spraying hose are mixed in multiple air groups, and are arranged according to a certain distance and a certain rule, such as oblique five holes, lateral tee holes, horizontal three holes, left and right holes and no holes, etc.
the water outlet hole generally adopts mechanical drilling, start drilling and laser drilling, the aperture is 0.1~1.2mm, and the empty shape is round. The main models are: N30, N45, N50, and N65.
| Width (mm) | Dia (mm) | Wall thick (mm) | Roll Weight (kg) | Roll Length (m) |
|---|---|---|---|---|
| 35 | 22 | 0.18 | 10.5 | 1000 |
| 45 | 28 | 0.18 | 13.5 | 1000 |
| 50 | 32 | 0.20 | 20 | 1000 |
| 65 | 40 | 0.23 | 5 | 200*5 |
| 80 | 50 | 0.30 | 5 | 100*4 |
| 100 | 63 | 0.30 | 6 | 100*3 |
| Customised Design | 0.4 | Contact us for more details | ||
