Product Descriptions

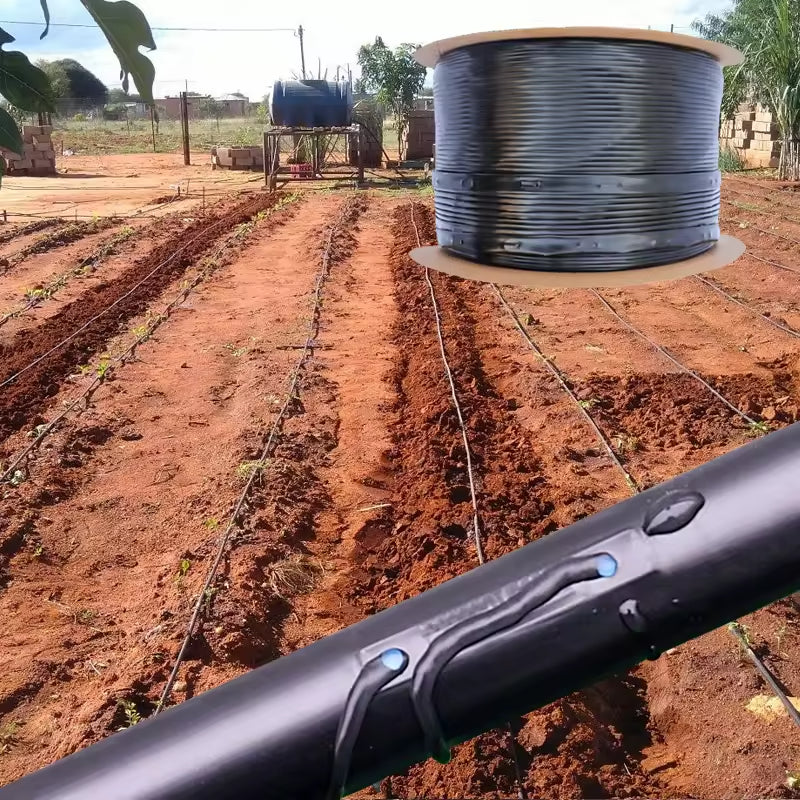

Precision Irrigation Drip Tape
100% PE raw material , anti-UV, anti-corrosion, and durability.

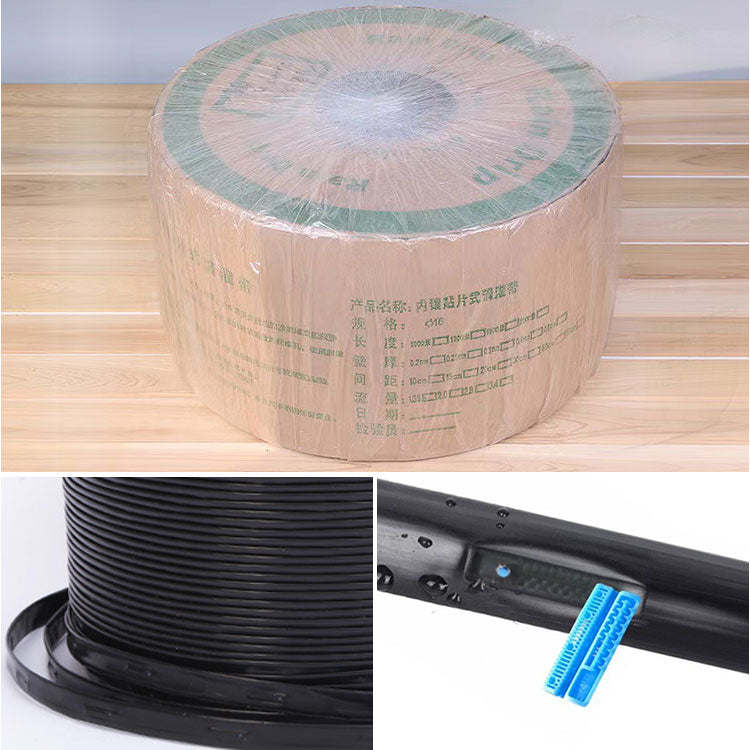

Extruded with dripper inside, light weight and packed by roll, good for ransportation.
Suitable for large farm application.
Precision performance Cv ≤ 5%.

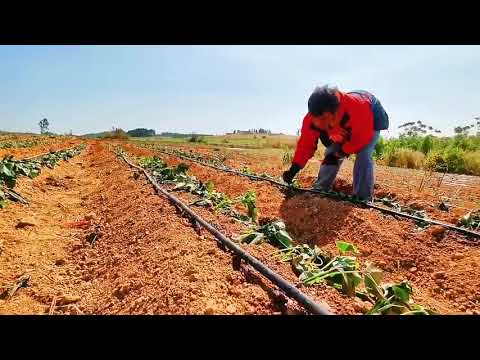

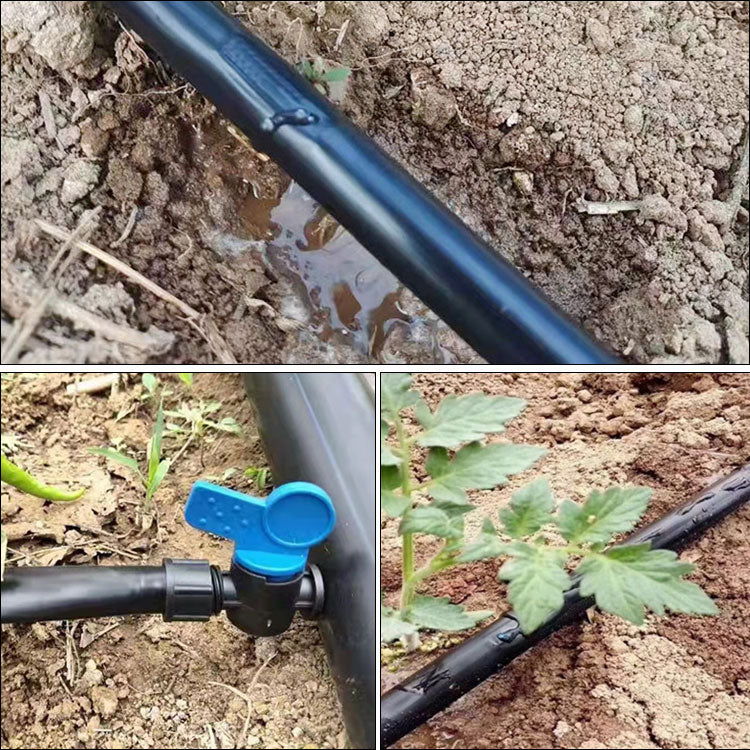

Drip tape can be installed easily either above or below ground. It is designed for use in vegetable gardens, narrow rows of vegetation, and for row crops. Most often, a vegetable garden or vegetable crops are planted in parallel rows. This makes the layout of a drip tape very easy.
To successfully use drip tape for seed germination, the soil type, the drip tape outlet spacing, and the depth and spacing between the drip tape laterals should be determined first. The drip tape must be close enough to the surface and the drip outlets must be in close enough spacing to germinate the seeds. For example, drip tape 4 to 5 inches deep was successfully used to germinate onion seeds in silt loam soil, while drip tape with 12 inch spacing failed to uniformly germinate the same crop.
When using a drip tape system, the right amount of water must be applied. If more water is applied than the plants need, most of the benefits that the drip tape system provides will be negated. The soil will be excessively wet, promoting disease, weed growth, and nitrate leaching.
Option one for large coils: Mount the drip tape spool on a stand at the end of the row, tie the stand to the ground and pull the drip tape close to the ground.
| Diameter (mm) | Wall Thickness (mm) | Spacing (mm) | Roll Weight (kg) | Roll Length (m) |
|---|---|---|---|---|
| 16 | 0.18 | 300 | 19.0 | 2000 |
| 16 | 0.18 | 200 | 19.6 | 2000 |
| 16 | 0.18 | 150 | 15 | 1500 |
| 16 | 0.18 | 100 | 16.2 | 1500 |
| 16 | 0.30 | 300 | 22.2 | 1500 |
| 16 | 0.30 | 200 | 23.0 | 1500 |
| 16 | 0.30 | 150 | 15.5 | 1000 |
| 16 | 0.30 | 100 | 16.5 | 1000 |
| 16 | 0.40 | 300 | 15.3 | 800 |
| 16 | 0.40 | 200 | 15.7 | 800 |
| 16 | 0.40 | 150 | 16.0 | 800 |
| 16 | 0.40 | 100 | 16.7 | 800 |
